Engine Specifications

• Model: Scania DC13
• Configuration: Inline 6-cylinder, 4-stroke
• Displacement: 12.7 liters (774 cubic inches)
• Power: 345 hp (257 kW) at 1,800 RPM
• Fuel Type: Diesel
• Emissions: Tier 4 Final / Stage V

Performance

• Operating Weight: 24,890 kg (54,882 lbs)
• Bucket Capacity: 5.2 cubic yards (4.0 cubic meters)
• Breakout Force: 42,230 lbf (188 kN)
• Dump Height (at 45 degrees): 10 ft 9 in (3.28 m)
• Dump Reach (at 45 degrees): 3 ft 11 in (1.19 m)

Dimensions and Weight

• Overall Length (with bucket): 31 ft 3 in (9.53 m)
• Overall Width (with bucket): 10 ft 6 in (3.20 m)
• Overall Height: 12 ft 2 in (3.71 m)
• Wheelbase: 11 ft 6 in (3.5 m)
• Ground Clearance: 1 ft 6 in (0.45 m)

Features

• Transmission: ZF 5-speed transmission with torque converter
• Axles: Heavy-duty axles with limited slip differentials for enhanced traction
• Hydraulic System: Load-sensing hydraulic system for efficient power use
• Hydraulic Flow: 100 GPM (378.5 L/min)
• Steering System: Articulated steering with a 40-degree steering angle
• Tires: 29.5R25 radial tires for durability and performance

Safety and Compliance

• Safety Features: ROPS/FOPS certified cab, rearview camera, and advanced braking system
• Compliance: Meets ISO and CE standards for safety and performance

Cab and Controls

• Cab Design: Ergonomically designed with excellent visibility
• Control Panel: Advanced touchscreen monitor with real-time machine data and diagnostics
• Seating: Adjustable air-suspension seat with heating and lumbar support
• Climate Control: Air conditioning and heating for operator comfort
• Sound Insulation: Reduced noise levels for a quieter work environment

Applications

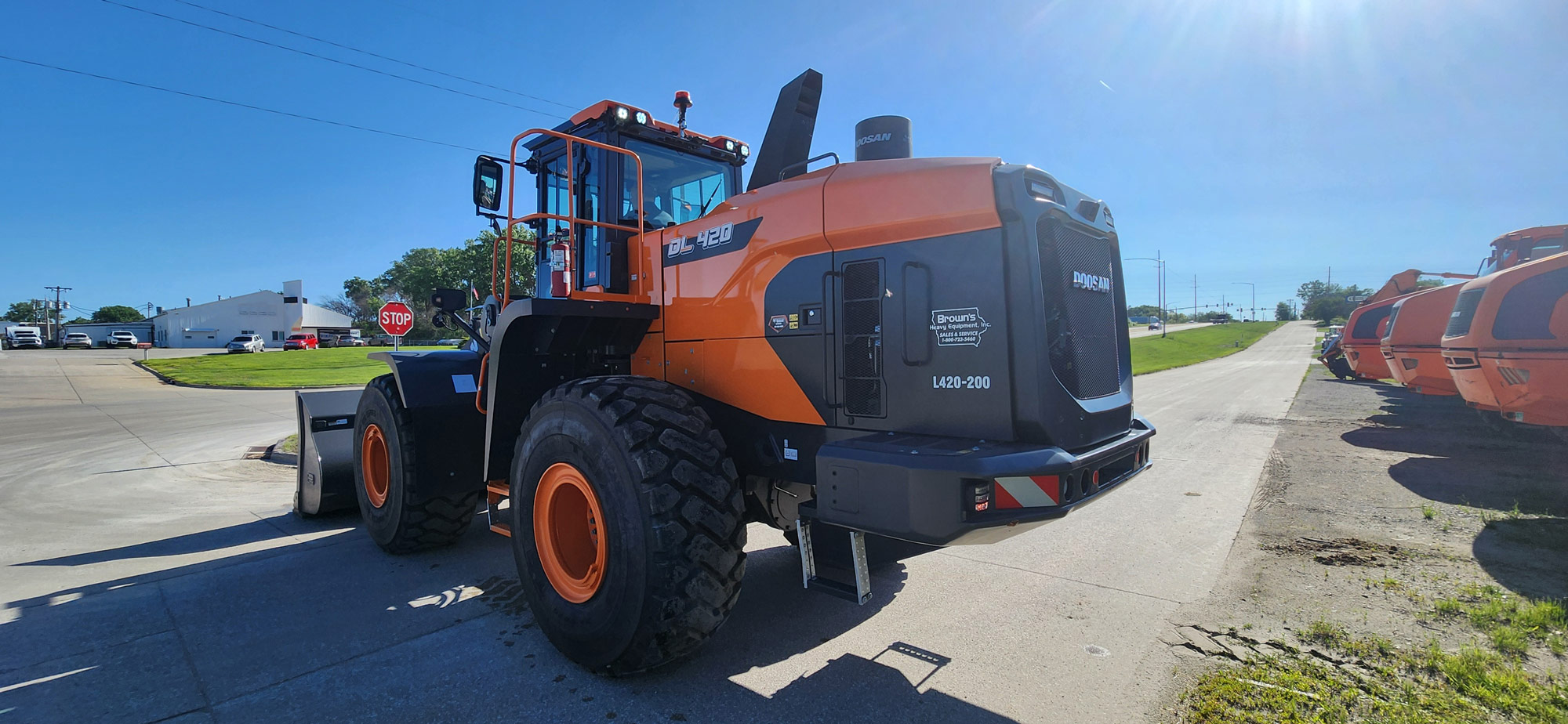

The Doosan DL420-7 is ideal for:

• Construction: Material handling, loading trucks, and site preparation.
• Mining: Loading hoppers and transporting materials.
• Aggregate: Moving and stockpiling aggregates and other materials.
• Waste Management: Handling and transporting waste materials.

‍
